AccumaticTM Brine System

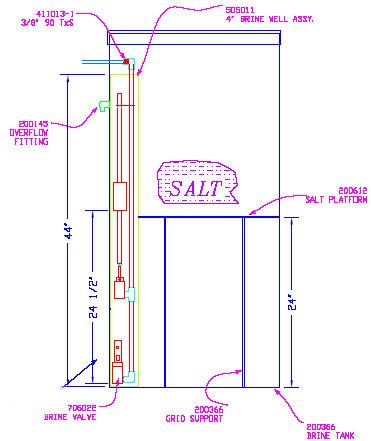

The Accumaticδ brine system consists of a brine tank and an internal or external brine ejector (also called a throat and nozzle assembly) mounted inside the Task Master IIδ or Task Masterδ – 2 or 2-½ inch valve or mounted externally as part of a valve nest. Inside the brine tank is a brine valve, a protective housing called a brine well, and a salt platform.

The brine system applies a salt solution to the softener to regenerate the cation exchange resin.  Saturated brine (26% NaCl by weight) is drawn from the brine tank by the ejector. Each model of softener has a different injector to generate a different brine flow rate.  The corrosion resistant injectors are sized to dilute the saturated brine to 10% NaCl by weight.   This brine concentration minimizes salt use during regeneration.

To create the saturated brine, dry salt is added to the brine tank, where it is dissolved in water.  Since there is always an excess of salt, the brine solution is saturated.  In the high grid plate design, the dry salt is not allowed to fill the bottom of the brine tank.

The saturated brine is drawn from below the grid plate (and below the salt bed) eliminating salt bridging and mushing. The Accumaticδ system controls the amount of brine solution added during regeneration and automatically refills the brine tank with water after regeneration. Because of the high grid plate, brine volume is not dependent upon void space in the salt bed.  Brine drawn during regeneration is repeatable and accurate.





Features

·         Made from Pipe. The Accumaticδ brine valve is available in ⅜, ½, 1” and 1Ό” sizes. All sizes are constructed of heavy duty Sch.80 PVC. The sizes are I.D. as in pipe size, not O.D. as in tubing size. Our ” ID brine valve is the same size as other ½” O.D. valves. The Accumatic brine valve is made from pipe, not tubing.

·         Very precise measurement of brine.  The Accumaticδ valve provides accurate volumetric control of brine draw. The same amount is drawn every time.  The voids of the salt do not affect the brine draw.

·         Brine check in brine valve prevents air draw into mineral tank.

·         Positive pressure is applied to seat the brine valve to prevent brine contamination during the service cycle.

·         Standard systems have a fixed brine float which is factory preset at a brine draw which works for the system. Brine draw can be adjustable by adding the optional adjustable brine float.





AccumaticΤ Brine System Application Table

Water King Model No.

Salt Draw (lbs)

Capacity (Kgr)

Brine Tank Size (inches)

Brine Tank Part No.

Brine Line/ Brine Valve

Salt Storage (lbs)

50

29

49

18x40

805061

⅜”/⅜”

320

70

29

69

18x40

805061

⅜”/⅜”

320

100

66

100

24x40

805076

½”/⅜”

500

120

66

130

24x40

805076

½”/⅜”

500

150

66

153

24x40

805076

½”/⅜”

500

180

106

196

24x50

805077

½”/⅜”

580

240

106

245

24x50

805077

½”/⅜”

580

300

106

293

24x50

805077

½”/⅜”

580

450

145

432

30x50

805177

½”/½”

900

600

244

594

39x60

805178

½”/½”

2,000

750

244

731

39x60

805178

½”/½”

2,000

900

274

837

42x60

805179

--/1”

2,400

1200

388

1,170

50x60

805169

--/1Ό”

3,300

1650

559

1,609

60x60

805170

--/1Ό”

4,800

2100

559

1,809

60x60

805170

--/1Ό”

4,800

2550

805

2,486

72x60

805171

--/1Ό”

7,000

3000

805

2,700

72x60

805171

--/1Ό”

7,000




AccumaticTM Brine System Operation

  1. The Task Masterδ valve shifts to the brine position. Flow now passes through the brine injector mounted inside the valve body (internal injector).  (See part #2 on the exploded view of the Task Masterδ.) The injector draws a vacuum on the brine line.
  2. This vacuum releases the brine valve seal (originally seated by incoming fill water pressure). The Free-flow valve drops open allowing brine to be drawn from the tank. As water is drawn from the tank, the main float will drop to allow re-fill. At the same time, the vacuum draws the air check valve closed to prevent the drawing of air through the re-fill valve.
  3. The unit will continue to draw brine until the water level in the brine tank reaches the bottom of the brine riser tube. At this time the brine check will seat. This again prevents air from being drawn into the system. The Task Masterδ valve remains in brine position and water continues to pass through the injector even though it is not drawing brine.  This cycle is called Slow Rinse.  Slow rinse ends when the cycle timer advances the piston to the Fast Rinse position.
  4. In the Fast Rinse position (and all other positions except Brine Draw) the brine line is under positive pressure.  This positive pressure lifts the inverted free-flow valve, and the air check valve and allows water to begin refilling the brine tank.
  5. Refilling continues until the water level in the brine tank reaches the preset level and the float causes the brine valve seat and seal. The continuing positive pressure on the brine line maintains this seal.

The fresh water, which entered the brine tank, is now in contact with solid salt. Over the next few hours, the water becomes saturated with salt creating saturated brine.



AccumaticΤ Brine System Sub Assembly Part №

Brine Tank

Assy

Part №

Size

Brine Tank

Brine Well

Grid Plate

Grid Support

Brine Line/ Brine Valve

Brine Valve

Brine Line Assy

Brine Director Assy

805061

18x40

200010-1

505007

200190-1

200629-1

⅜”/⅜”

706022

200126-1

200442-1

805076

24x40

200375

505007

200612

200374

½”/⅜”

706022

200126-2

200442-2

805077

24x50

200376

505014

200145

200366

½”/⅜”

706022

200126-2

200442-2

805177

30x50

200561

505014-1

200531

200266

½”/½”

706044

200126-3

200442-3

805178

39x60

200589-RM

505014-1

200532

200273 (1)

½”/½”

706044

200126-3

200442-3

805179

42x60

200590-RM

505014-1

200533

SW4260-24

--/1”

706055

806696

200442

805169

50x60

200592-RM

505014-1

200536

SW5060-24

--/1Ό”

706066

806690

200442

805170

60x60

200591-ZZ

505014-1

200537

SW6060-24

--/1Ό”

706066

806690

200442

805171
