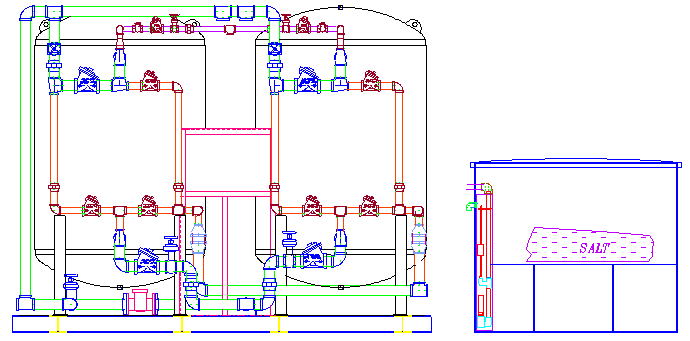

VN Series 150 to 3000 Water Softeners with 1 1/2 to 3" inlet and outlet

Standard Features

DM series 125 psi Cast Iron Diaphragm Valves in Valve Nest Configuration

6-Day timer

100 psi Epoxy Lined and Coated Carbon Steel Mineral Tanks

EE series – PVC External Brine Ejector

Water King Accumatic brine system

Fixed Rate External Backwash Rate of Flow Controllers.

Accumaticä Brine System.

Resin Polystyrene 8% DVB CL

Multiple Point ABS Distributor

110V, 60Hz, 1Ø

Options

ASME Code Tanks

7-day timer

Demand Initiation

Twin configuration with stagers and timers

Twin Alternating with EDRII, PW series meter, stagers and ARC timers

Pressure Gauge and Test Tap Kit

Skid mounting

220V, 50Hz, 1Ø

Operating Conditions 25 to 100 psi S 100°F

VN 150 to 3000 1 1/2, 2, 2 1/2, 3 Application Table
Model No Tank
(In.) 		Resin Vol.
(ft3) 		Cont Flow
(gpm) 		Peak Flow (gpm) Preset Capacity
(Kgr) 		Brine Tank
(In.) 		Salt Applied
(lbs.) 		Salt Storage
(lbs.) 		Brine Valve
(In.)
150 - 1 1/2 20x54 5 50 69 153 24x40 66 500 3/8
180 - 1 1/2 20x54 6 41 68 196 24x50 106 580 3/8
180 - 2 20x54 6 60 90 196 24x50 106 580 3/8
240 - 1 1/2 24x54 8 53 70 245 24x50 106 580 3/8
240 - 2 24x54 8 80 119 245 24x50 106 580 3/8
300 - 1 1/2 30x60 10 55 72 296 24x50 106 580 3/8
300 - 2 30x60 10 94 124 296 24x50 106 580 3/8
300 - 2 1/2 30x60 10 100 150 296 24x50 106 580 3/8
300 - 3 30x60 10     296 24x50 106 580 3/8
450 - 1 1/2 30x60 15 54 71 432 30x50 145 900 1/2
450 - 2 30x60 15 92 124 432 30x50 145 900 1/2
450 - 2 1/2 30x60 15 109 184 432 30x50 145 900 1/2
450 - 3 30x60 15 150 225 432 30x50 145 900 1/2
600 - 2 36x60 20 94 124 594 39x60 244 2000 1/2
600 - 2 1/2 36x60 20 115 185 594 39x60 244 2000 1/2
600 - 3 36x60 20 200 287 594 39x60 244 2000 1/2
750 - 2 36x72 25 98 130 731 39x60 244 2000 1/2
750 - 2 1/2 36x72 25 142 188 731 39x60 244 2000 1/2
750 - 3 36x72 25 209 280 731 39x60 244 2000 1/2
900 - 2 42x72 30 101 132 837 42x60 274 2400 1
900 - 2 1/2 42x72 30 147 194 837 42x60 274 2400 1
900 - 3 42x72 30 222 293 837 42x60 274 2400 1
1200 - 2 1/2 48x72 40 149 196 1,170 50x60 388 3300 1 1/4
1200 - 3 48x72 40 227 298 1,170 50x60 388 3300 1 1/4
1650 - 2 1/2 54x72 55 151 197 1,609 60x60 559 4800 1 1/4
1650 - 3 54x72 55 230 301 1,609 60x60 559 4800 1 1/4
2100 - 2 1/2 60x72 70 153 198 1,809 60x60 559 4800 1 1/4
2100 - 3 60x72 70 232 303 1,809 60x60 559 4800 1 1/4
2550 - 2 1/2 66x72 85 155 199 2,486 72x60 559 7000 1 1/4
2550 - 3 66x72 85 235 306 2,486 72x60 559 7000 1 1/4
3000 - 2 1/2 72x72 100 157 200 2,700 72x60 559 7000 1 1/4
3000 - 3 72x72 100 240 310 2,700 72x60 559 7000 1 1/4
  1. Allowable continuous flow is flow at 15 psi max head loss or 10 gpm/ft3 whichever is less.
  2. Allowable peak flow is flow at 25 psi max head loss or 15 gpm/ft3 whichever is less.
  3. Capacity calculation assumes 90% utilization of capacity at preset brine draw.
  4. Brine draw can be adjusted from 5 to 15 lbs/ft3 of resin upon request.
