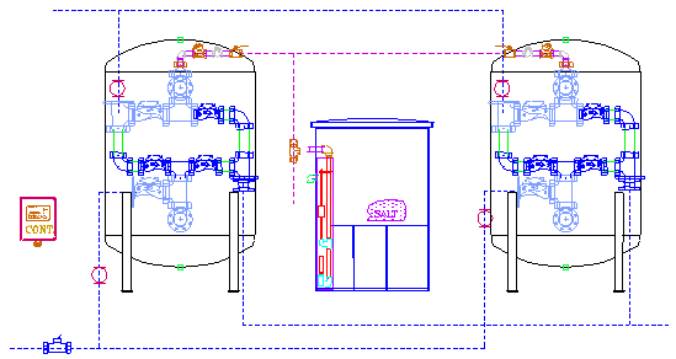

VN 900 to 3000 Application Table

Model №

900

1200

1650

2100

2250

3000

Dia.x Side Shell (in.)

42x72

48x72

54x72

60x72

66x72

72x72

Capacity (Kilograings)

837

1,170

1,609

1,890

2,490

2,700

Salt Applied (lbs)

274

388

559

559

805

805

4” Pipe –Cont Flow Rate¹ (gpm)

300

381

389

397

405

410

4” Pipe - Peak Flow Rate² (gpm)

450

509

517

526

534

540

6” Pipe –Cont Flow Rate¹ (gpm)

400

550

700

835

862

6” Pipe - Peak Flow Rate² (gpm)

600

825

1,050

1,125

1,155

Backwash³ (gpm)

50

65

80

100

120

140

Resin (ft³)

30

40

55

70

85

100

Gravel (ft³)

500

1,100

1,300

1,600

2,100

2,600

Brine Tank-Dia. x Side Shell (in.)

42x60

50x60

60x60

60x60

72x60

72x60

Salt Storage (lbs)

2,370

3,360

4,840

4,840

6,970

6,970

Brine Line Size (in.)

1

1 ½

1 ½

1 ½

1 ½

1 ½

1.     Allowable continuous flow is flow at 15 psi max head loss or 10 gpm/ft³ which ever is less.

2.     Allowable peak flow is flow at 25 psi max head loss or 15 gpm/ft³ which ever is less.

3.     Backwash Flow Rate is 5 gpm/ft², which provides 50 to 75% resin bed expansion.

4.     Brining efficiency at 0.26 Kgr/lb of salt applied.  Assumes 90% utilization of capacity.

5.     Brining efficiency at 0.47 Kgr/lb of salt applied.  Assumes 90% utilization of capacity.

6.     Six-inch diaphragm valves require Humphrey pilot valves.
