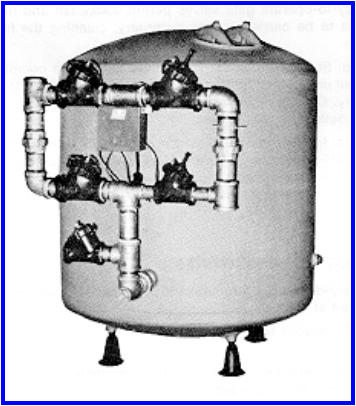

VN SERIES 24 - 78 WATER FILTERS |
The
Water King VN Series Filters Feature:
- PVC/ABS Internals
- Aquamatic 420 Diaphragm Valves
- Aquamatic Stager and Timer
- External Backwash Rate of Flow Controller
- Washed Gravel Underbedding
- Operating Conditions: Water Pressure 25 to 125 PSI Cold Water Operation
OPTIONS
- Timers. Standard models include 12-day timers. Seven-day timers are available at no extra cost.
- Differential pressure or flow initiated backwash is available using the Model 7000 Controller.
- Skid
Mounted units on welded structural steel frames are pre-piped,
pre-wired, and factory tested. Installation requires simple plumbing
connections to the manifold inlet and outlet, a drain, electrical connection,
and loading of the tanks.
- Pressure Gauges
and Test Taps can be installed
on the inlet and outlet of the system by inserting appropriate fittings
in the face piping. This allows
the user to sample the inlet and outlet water quality and to monitor
pressure losses through the system.
- Power. Standard electrical specifications of 120 VAC, 60 Hz. 220 VAC, 50 Hz. configurations are available.
- ASME Code Tanks are available.
