| Task Master III Parts List |
| 100407 Original
Posting |
|
Go to exploded view of Taskmaster valve
to see item numbers. |
| Ref
No. |
Part No. |
Description |
Price |
| 1,9,13,34 |
720220 |
1 1/2" Valve
body kit (316SS) |
|
| 2 |
|
Injector Assembly w/
O-Rings |
|
| |

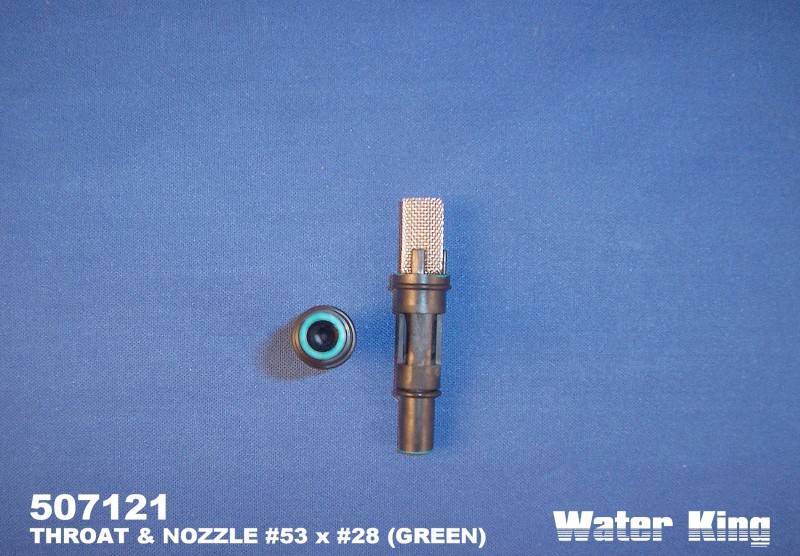

507121 |
RF-45 thru 70 Brine
injector assembly
 |
|
| |

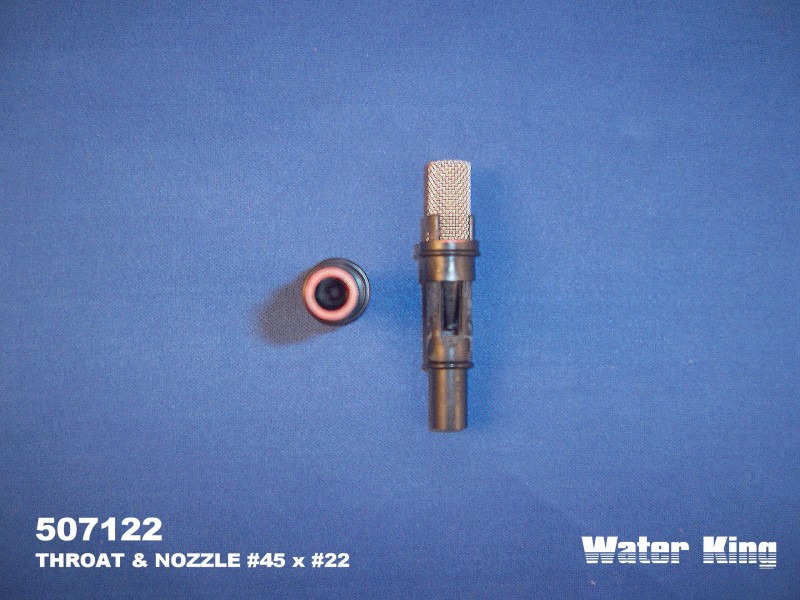

507122 |
RF-100 thru 150 Brine
injector assembly
|
|
| |
507124 |
RF-240 thru 450 Brine
injector assembly
|
|
| 3 |
430115 |
Injector plug |
|
| 4 |
400166-1 |
5/16-18 x 2 3/4"
Cap screw (5 Req'd) |
|
| 5 |
400165 |
5/16-18 x 3/4"
Cap screw (4 Req'd) |
|
| 6 |
|
3/4" NPT BW flow
control kit |
|
| |

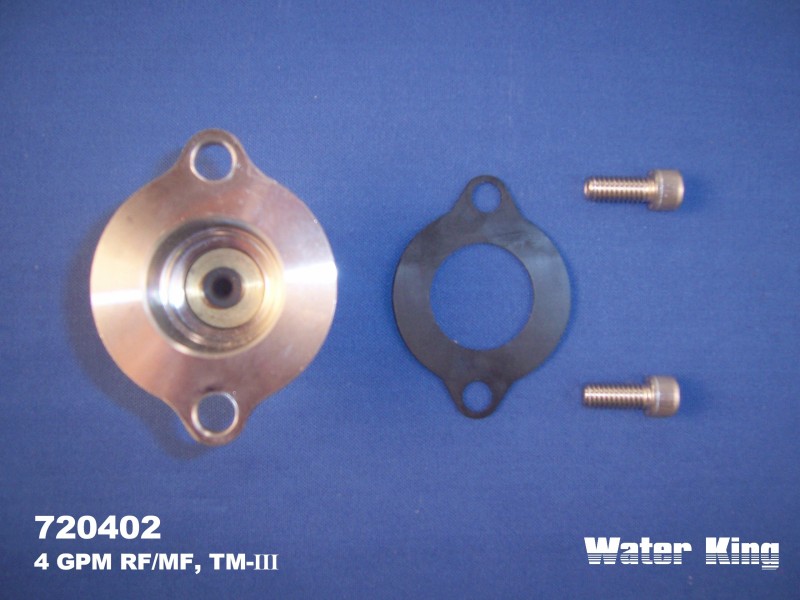

720402 |
RF/MF-50/70 BW flow
control
|
|
| |

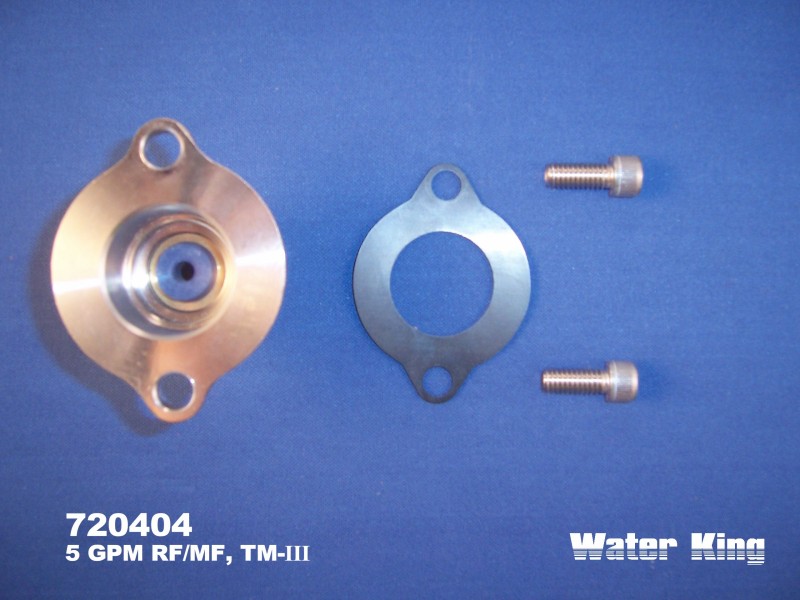

720404 |
RF/MF-100 BW flow
control
|
|
| |

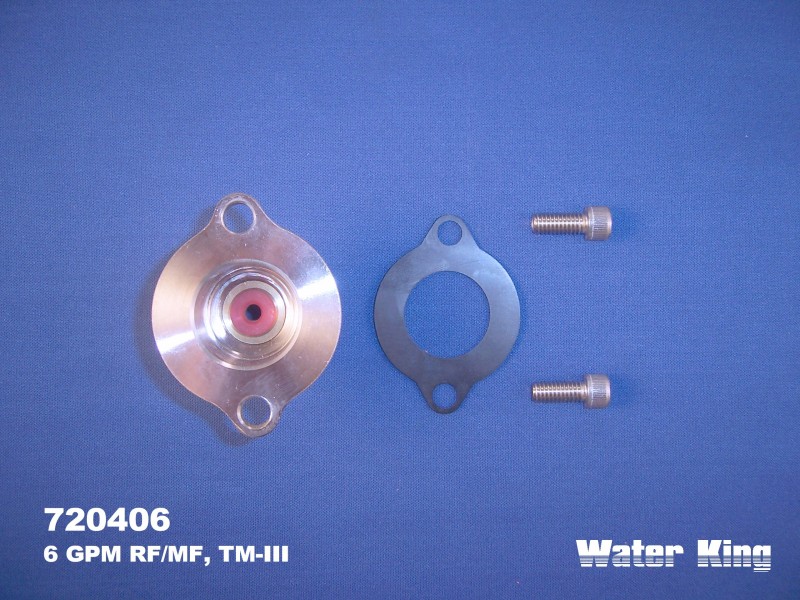

720406 |
RF/MF-120 BW flow
control
|
|
| |
720408 |
RF/MF-150 BW flow
control
|
|
| |

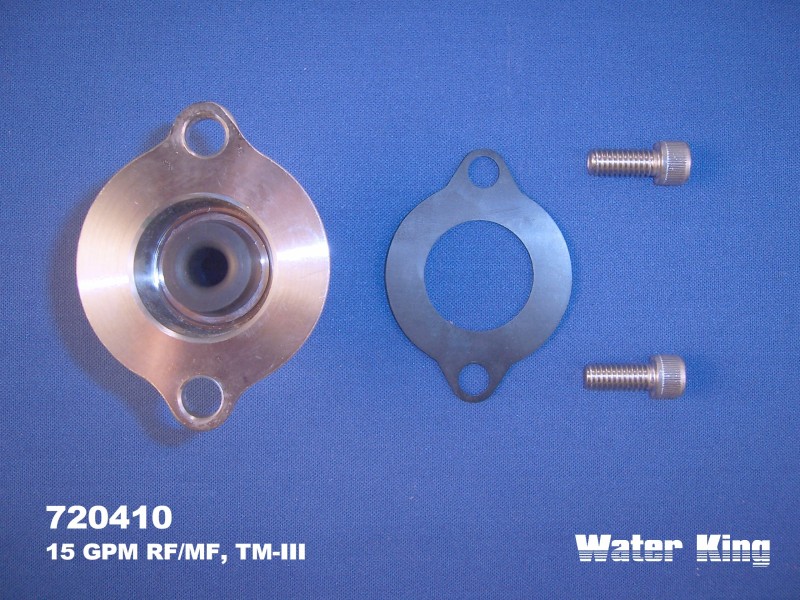

720410 |
RF/MF-240 BW flow
control
|
|
| |

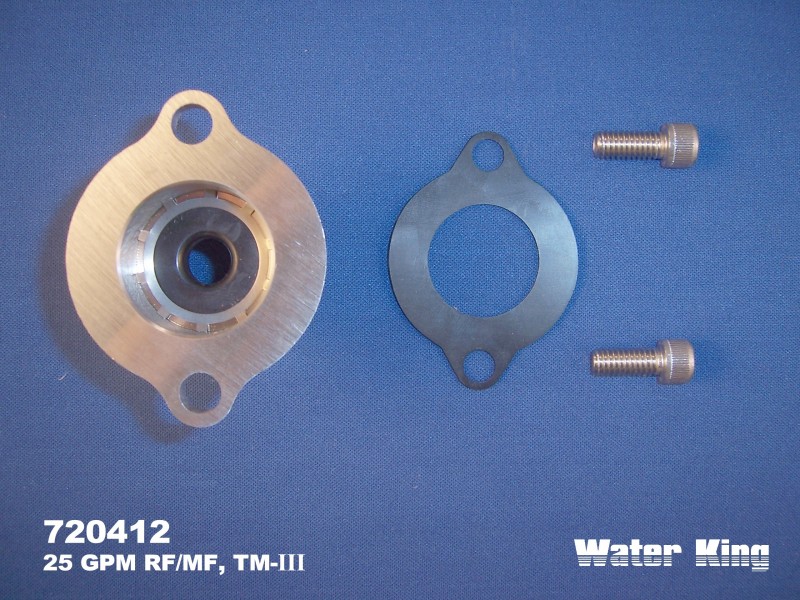

720412 |
RF/MF-300 BW flow
control
|
|
| 6 |
|
1 1/2" NPT BW
flow control kit |
|
| |

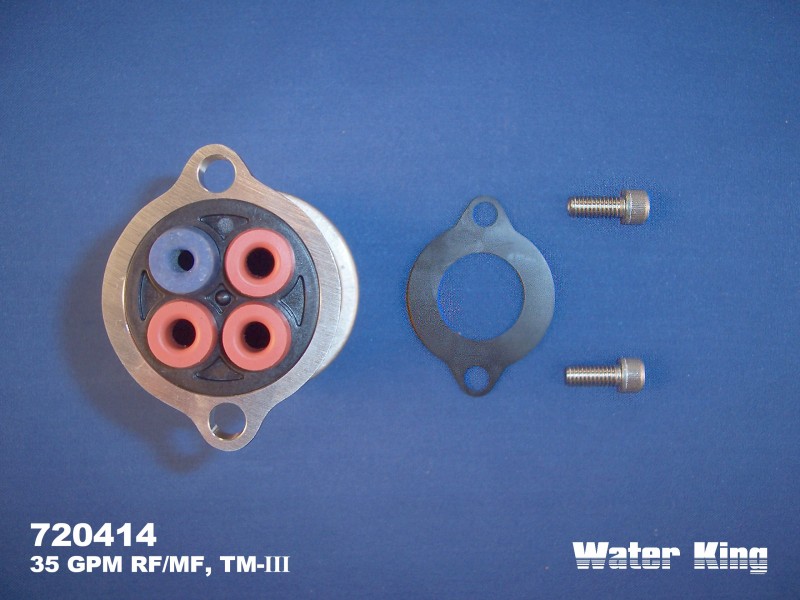

720414 |
35 GPM BW flow
control
|
|
| |
720415 |
Open BW flow control
|
|
| 5,9,10,11,12,14 |
514003 |
1 1/2" Piston
kit (316SS)
|
|
| 7,8,10,11,13,34,37,38 |
514010 |
RF Gasket/O-Ring kit |
|
| 7,8,10,11,13,34 |
514011 |
MF Gasket/O-Ring kit |
|
| 14,15,16 |
507241 |
Drive link assy |
|
| 20,26,27 |

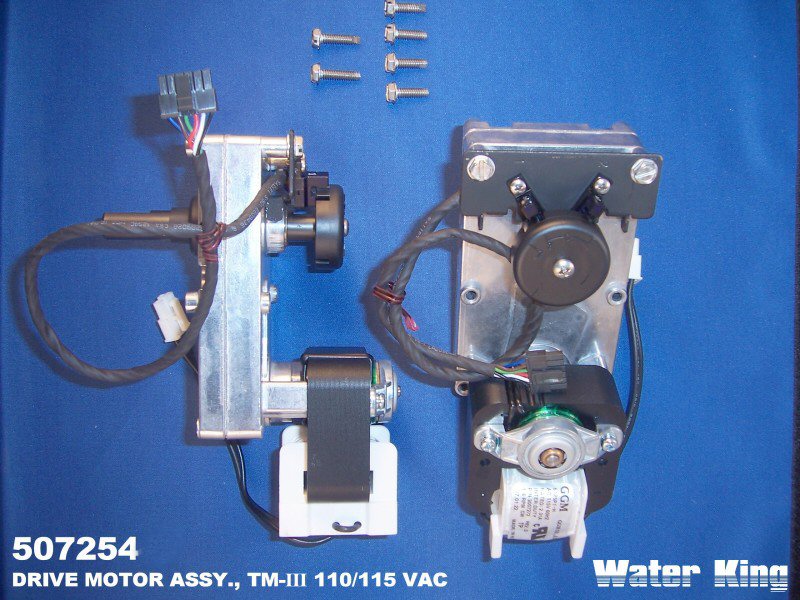

507254 |
Drive motor assembly
|
|
| 29,30 |
507501 |
Relay/Power circuit
board assembly |
|
| 29,44 |
507502 |
Twin circuit board
assembly |
|
| 34 thru 39 |
720215 |
Top mount tank
adapter kit |
|
| 34,39,40 |
720216 |
Side mount tank
adapter kit |
|
| 31 & 32 |
|
ERC control assembly |
|
| |
707201-t |
ERCt control assembly |
|
| |
707201-d |
ERCd control assembly |
|
| |
707201-f-t |
ERCf/t control
assembly |
|
| 18 |
300830 |
Motor plate |
|
| 33 |
300831 |
NEMA 4 Cover with
gasket |
|
| 42 |
300832 |
NEMA 4 Cover with
gasket, NO ERC (Twin) |
|
| 47 |
|
Flow meter cable,
Sold with PW Series flow meter |
|
| 49 |
707155-1 |
Remote regeneration
cable |
|
|
|
|
|
