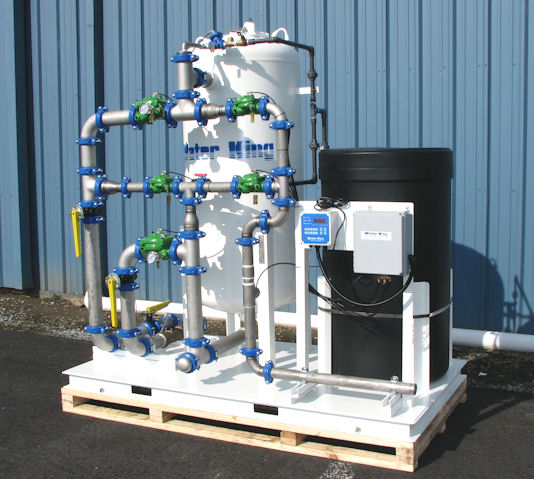

VN 150-1200 - M Series Softeners

Standard Features DMB series 230 psi Cast Iron Polyethylene Lined Diaphragm Valves in Valve Nest Configuration 99-day ERCt Electronic Timer MPV1 125 psi Brass Stager100 psi Epoxy Lined and Coated Carbon Steel Mineral Tanks  EE series – PVC External Brine Ejector Fixed Rate External Backwash Rate of Flow Controllers. Accumatic Brine System. Resin Polystyrene 8% DVB CL Multiple Point ABS Distributor  110V, 60Hz, 1Ø Options ASME Code Tanks Demand Initiation with ERCd Electronic Controller and Water King’s PW series flow meters Multiple Tank configuration with stagers and ERC controllers Twin Alternating with EDRd, PW series meter, and MPV3 stager Pressure Gauge and Test Tap Kit Skid mounting 220V, 50Hz, 1Ø Operating Conditions 25 to 100 psi S 100°F

Model № 150 180 240 300 450 600 750 900 1200 Dia.x Side Shell (in.) 20x54 20x54 24x54 30x60 30x60 36x60 36x72 42x72 48x72 Capacity (Kilograins) 153 196 245 293 432 594 731 837 1,170 Salt Applied (lbs) 66 66 91 91 145 244 244 274 388 2” Pipe –Cont Flow Rate1 (gpm) 50 60 80 94 92 94 98 101   2” Pipe - Peak Flow Rate2 (gpm) 75 90 120 124 124 124 130 132   3” Pipe –Cont Flow Rate1 (gpm)       100 150 200 209 222 225 3” Pipe - Peak Flow Rate2 (gpm)       150 225 287 280 293 310 4” Pipe –Cont Flow Rate1 (gpm)               300 381 4” Pipe - Peak Flow Rate2 (gpm)               450 509 Backwash3 (gpm) 10 10 15 25 25 35 35 50 65 Resin (ft3) 5 6 8 10 15 20 25 30 40 Gravel (lbs) 100 100 150 250 250 350 350 500 1,100 Brine Tank-Dia. x Side Shell (in.) 24x40 24x40 24x50 24x50 30x50 39x60 39x60 42x60 50x60 Salt Storage (lbs) 500 500 580 580 900 2,040 2,040 2,370 3,360 Brine Valve Size (in.) 3/8" 3/8" 3/8" 3/8" 1/2" 1/2" 1/2" 1 1 ½ Brine Line Size (in.) 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1 1 ½ BW, Drain, Rinse Pipe Size (in.) 2" 2" 2" 2" 2" 2" 2" 2" 2" Note:   Specifications listed are not skid mounted systems. Skid Dimensions are given upon request. Notes For VN Series 150 to 1200 Sizing Information: 1.       Allowable continuous flow is flow at 15 psi max head loss or 10 gpm/ft3 which ever is less.   2.       Allowable peak flow is flow at 25 psi max head loss or 15 gpm/ft3 which ever is less. 3.       Backwash Flow Rate is 5 gpm/ft2, which provides 50 to 75% resin bed expansion. 4.       Brining efficiency at 0.26 Kgr/lb of salt applied.  Assumes 90% utilization of capacity. 5.       Brining efficiency at 0.47 Kgr/lb of salt applied.  Assumes 90% utilization of capacity.
